Compact and robust.
Suitable for large batches.

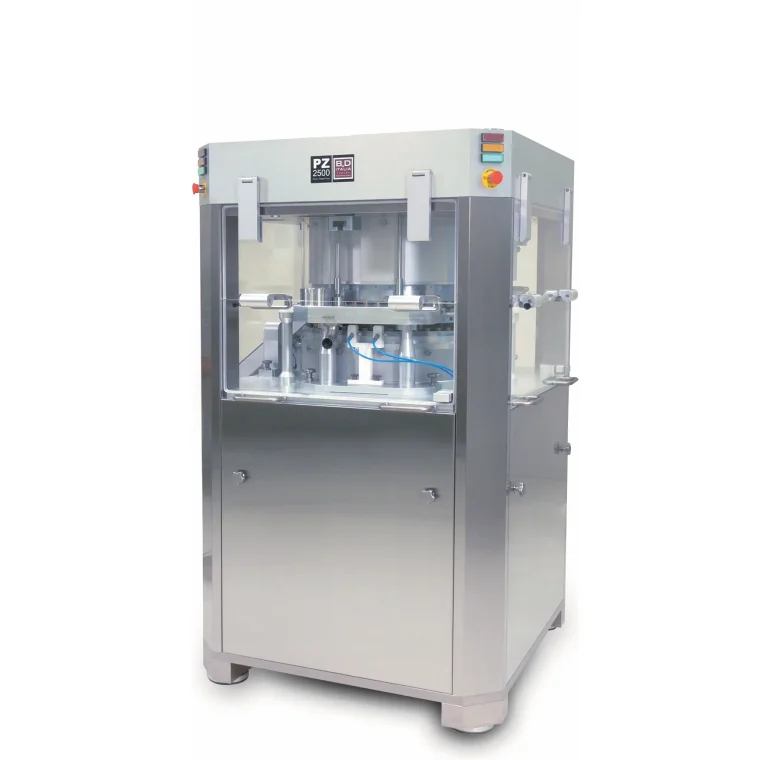

The PZ-2500 Series is a high-quality compact rotary tablet press designed to meet international cGMP standards. Ideal for large production batches due to its compact and user-friendly design
Typology:
industries:
Software:
Technological innovation: High performance and compact design.
High-quality finishes: Designed to meet cGMP standards.

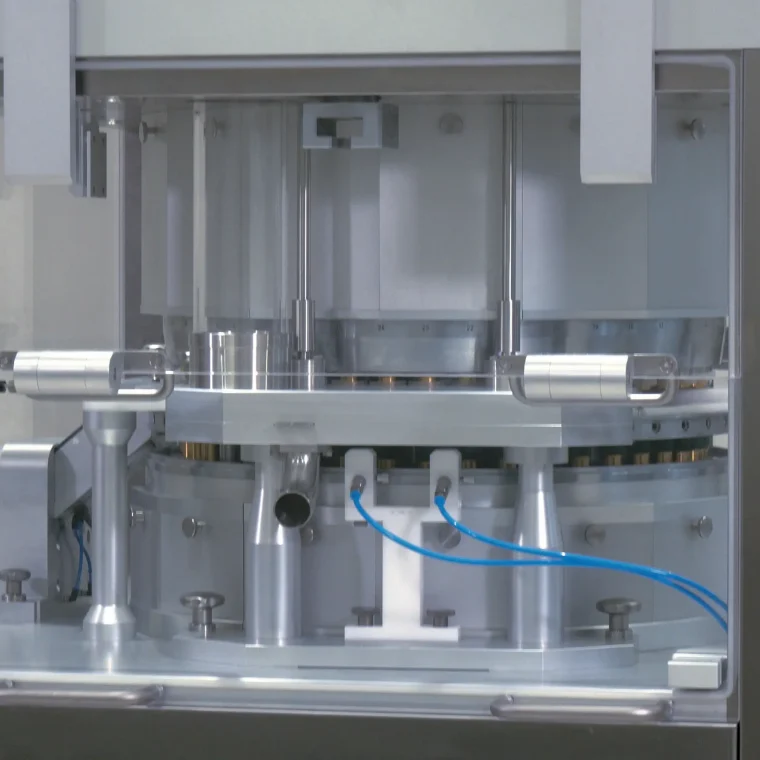

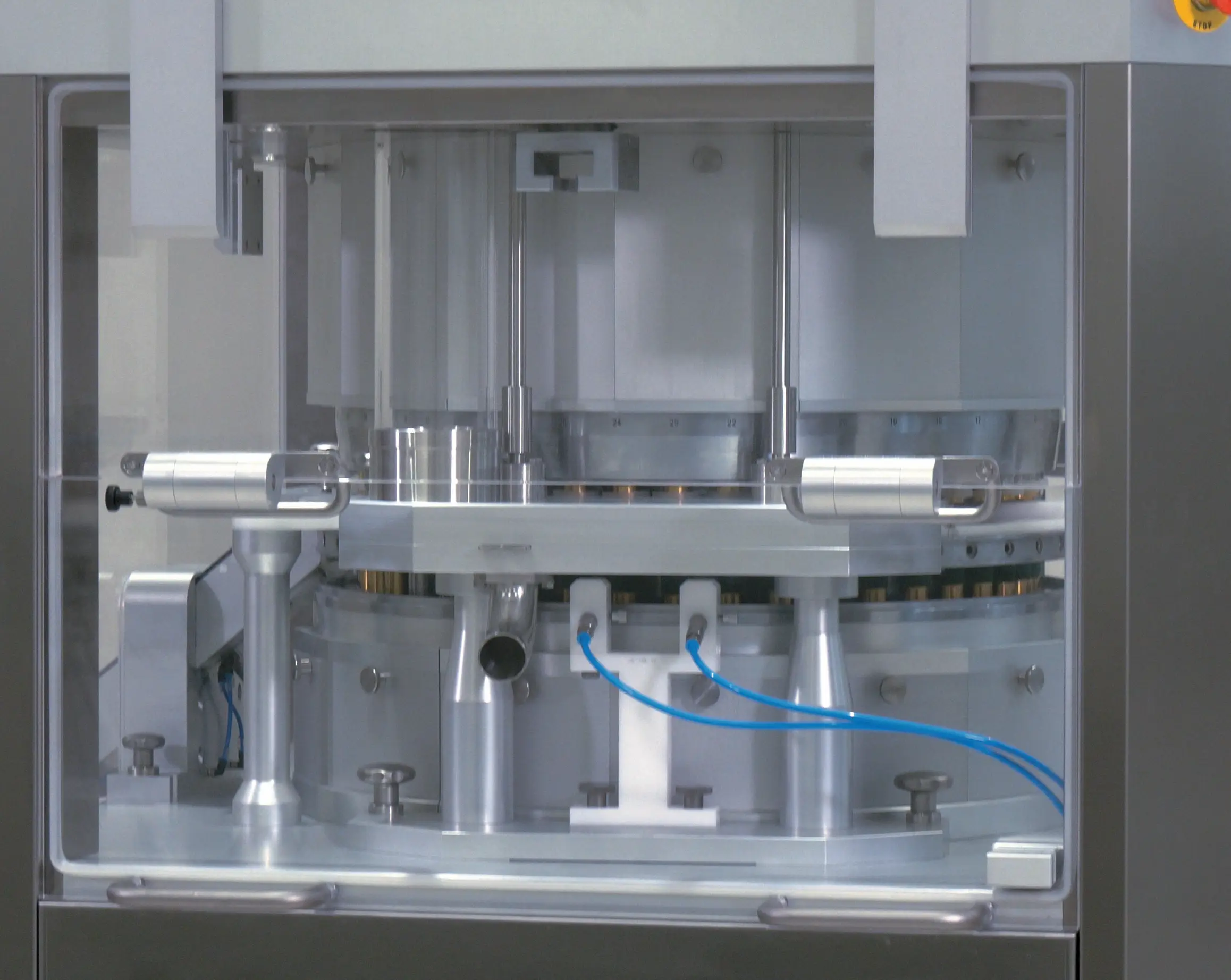

User-friendly design: Easy access to the compression area from all four sides.
Large production, small footprint: Suitable for large production batches while maintaining reduced dimensions and single output.”
Technical data
Turret pitch diameter
590 mm
Max precompression force
100 kN
Max compression force
100 kN
Feeder speed
10-100 rpm
Max filling depth
18 mm
Power consumption
23 kW
Machine weight
3.500 kg
Machine dimension
1.100x1.000 h 1.900 mm
Power cabinet weight
300 kg
Power cabinet dimension
800x600 h 1.900 mm
Control cabinet weight
80 kg
Control cabinet dimension
600x600 h 1.600 mm
Variants
| Nr punches stations | Punch type | Max tablet diam. | Die type | Turret speed (rpm) | Tablet output - tab/h |
|---|---|---|---|---|---|
| 43 | EU/TSM - D | 25 | D | 10-100 | 25.800 - 258.000 |
| 52 | EU/TSM - B | 18 | B | 10-100 | 31.200 - 312.000 |
| 62 | EU/TSM - B | 13 | BB | 10-100 | 37.200 - 372.000 |
